Sectional doors
Explore models, technical specifications and available options.

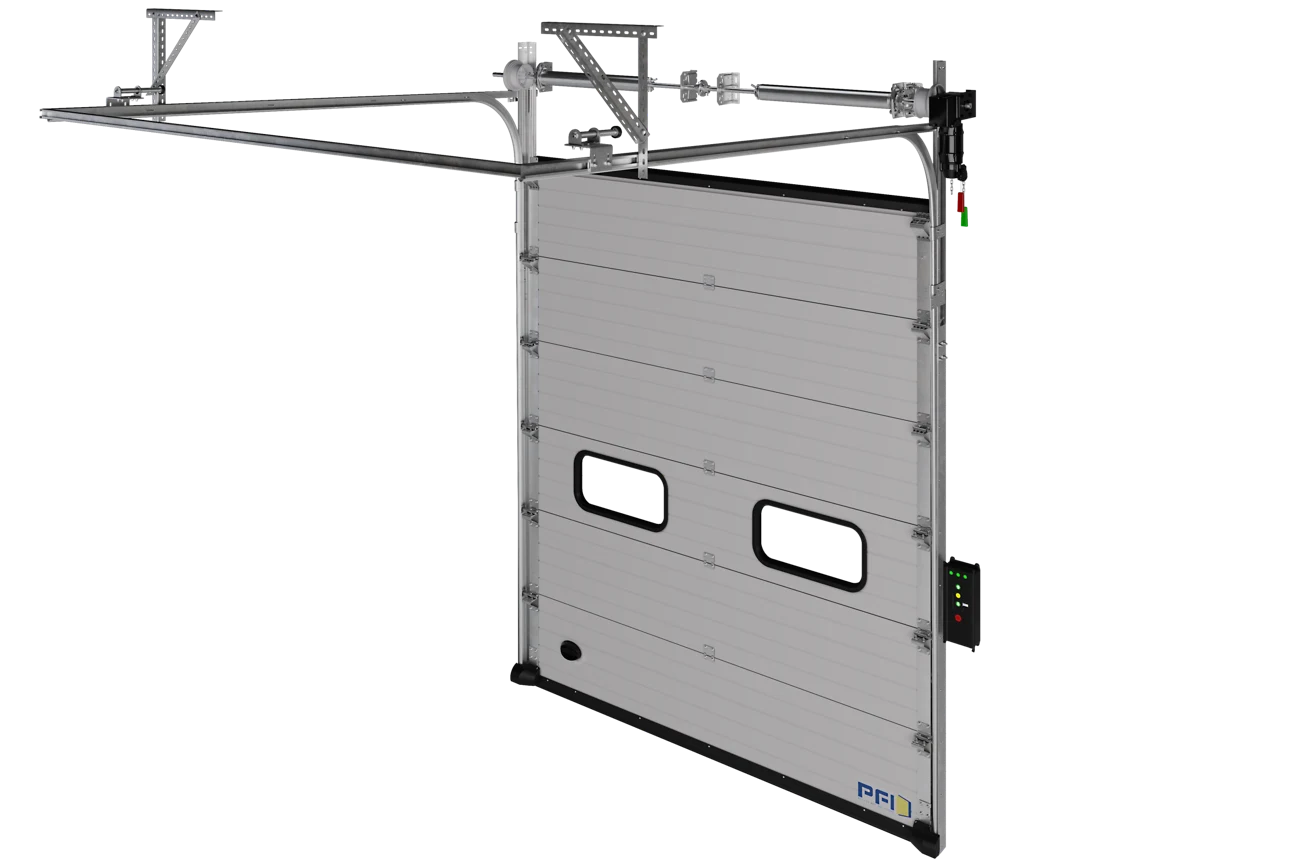

Features
Sectional doors open by sliding vertically, which allows them to take up as little space as possible when opening.
Suitable for standard applications (panel thickness 40mm) and for refrigeration field (panel thickness 80mm)
Technical specifications
- Panel thickness
- 40/80 mm
- I a 25 dB
- Sound proof
Basic specifications
- Wind resistance
- 1.000 Pa N/m3
Class 3
- Air permeability
- 40 m3/m2 /h at 60 Pa
Class 3
- Thermal resistance (no windows)
- 0,8 W/(m2/K)
- Thermal resistance (with windows)
- 1,0 W/(m2/K)
- Maximum width
- 6.000 mm
- Maximum height
- 6.000 mm
Safety, style, solidity. open new perspectives with our sectional doors
Thanks to the perimeter gaskets, they guarantee an optimal thermal insulation and resistance to atmospheric agents. They consist of galvanized steel rails, where panels with expanded polyurethane, covered with pre-painted sheet, hinged together, slide through shelves with wheels.
Specifications and documentation by email.
Models
Standard
Lintel height = 500 mm

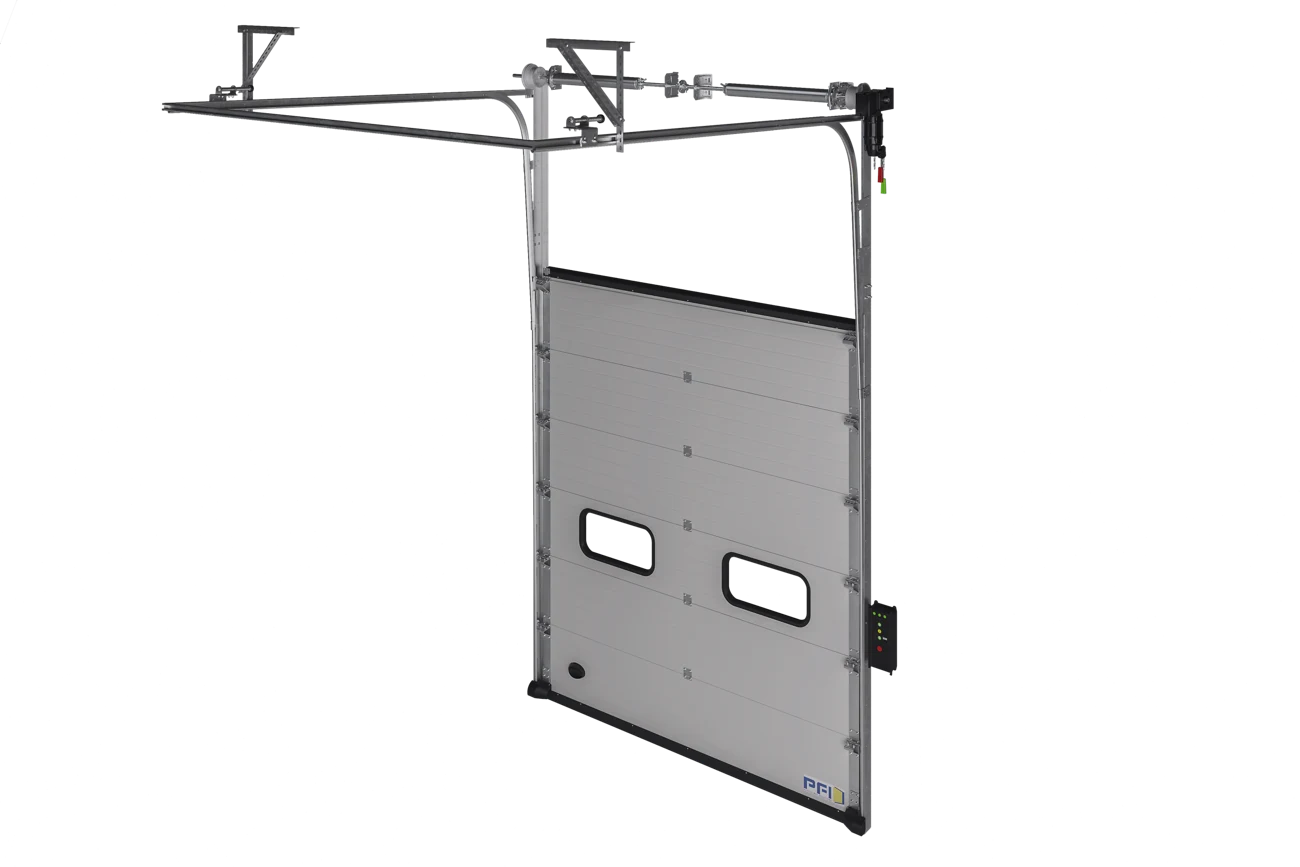

High
Lintel height > 500 mm

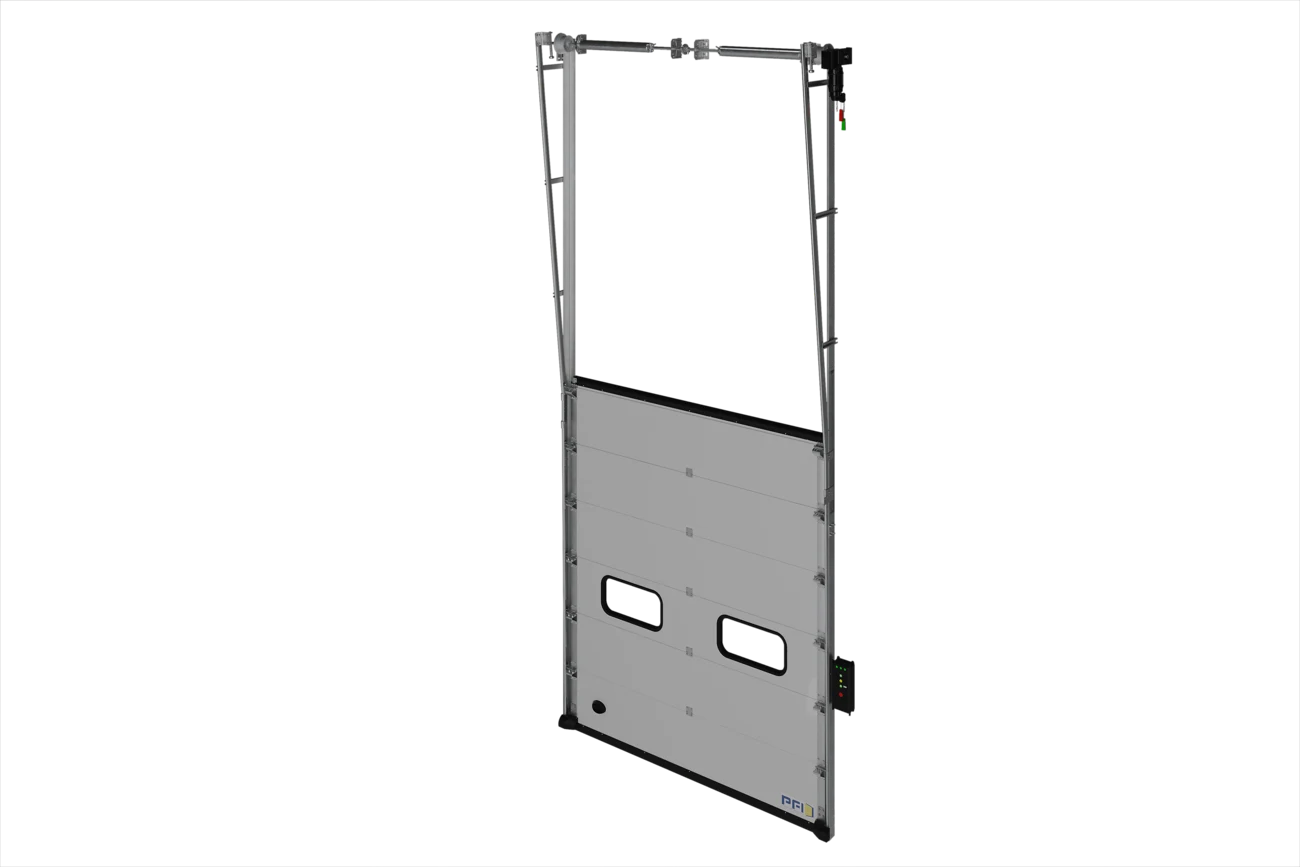

Vertical
Lintel height = H * 2 + 410 mm
*Other types of elevations on request
Accessories
Al sectional doors can be equipped with many accessories, useful for various applications.

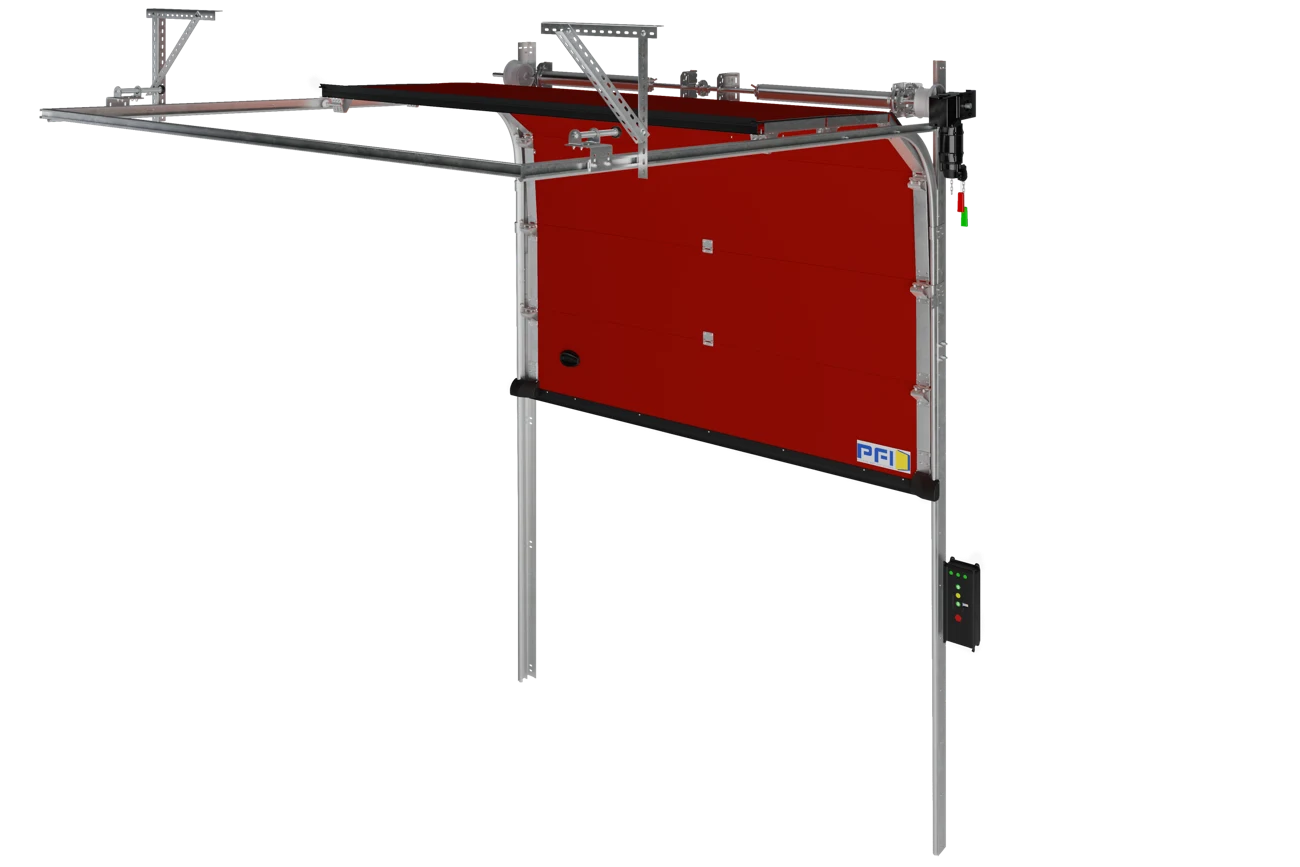

Automation
With motor and control panel

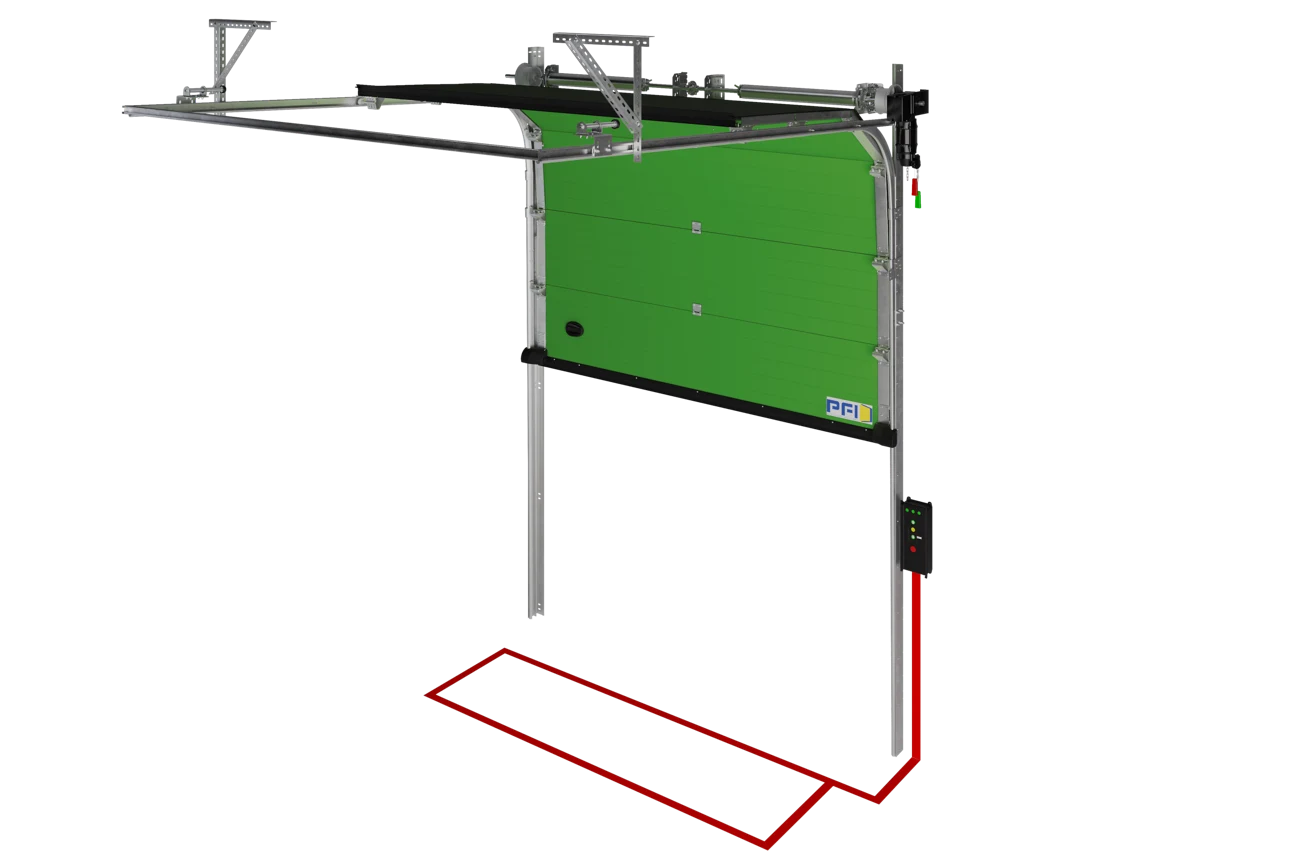

Magnetic loop
It detect the presence of forklift and open the door

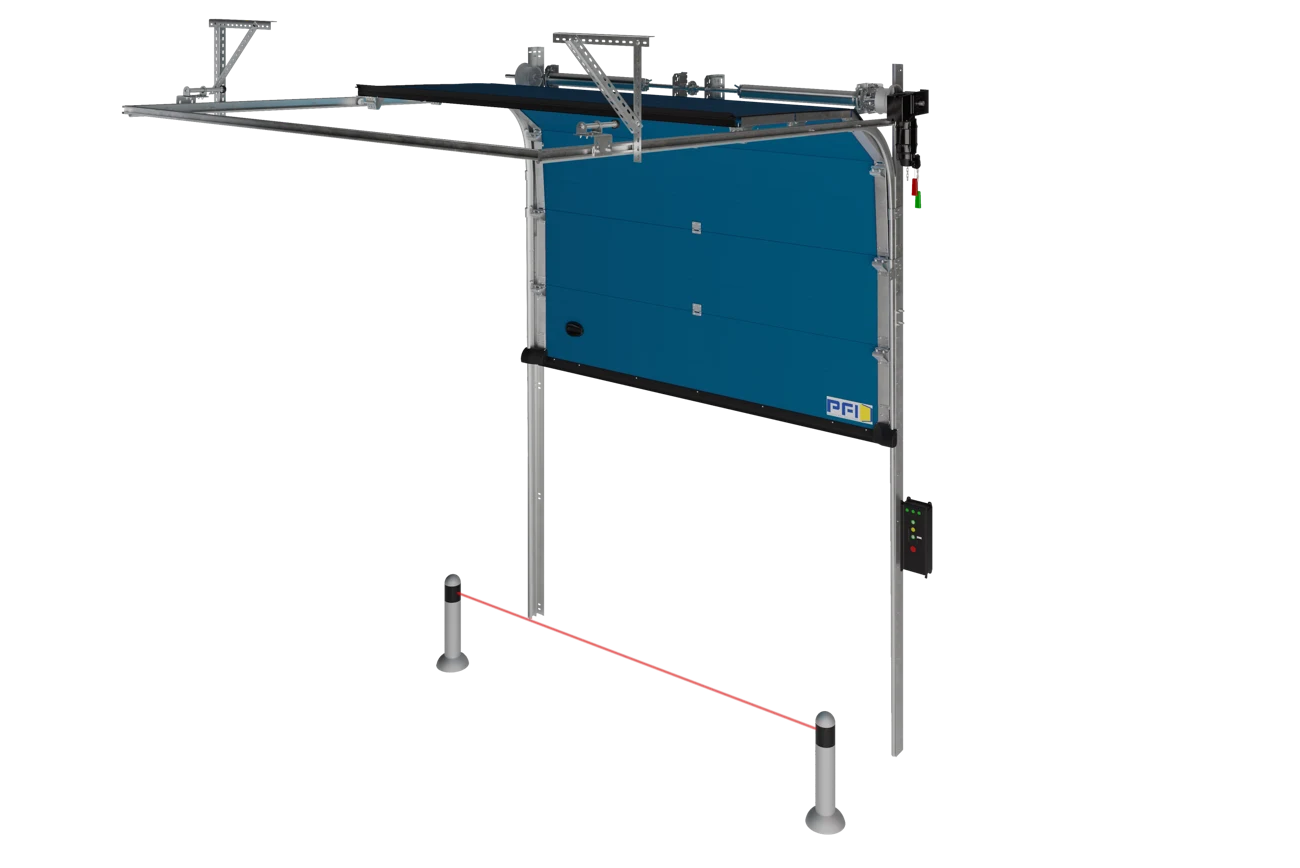

Photocells
The door opens automatically when the signal is interrupted

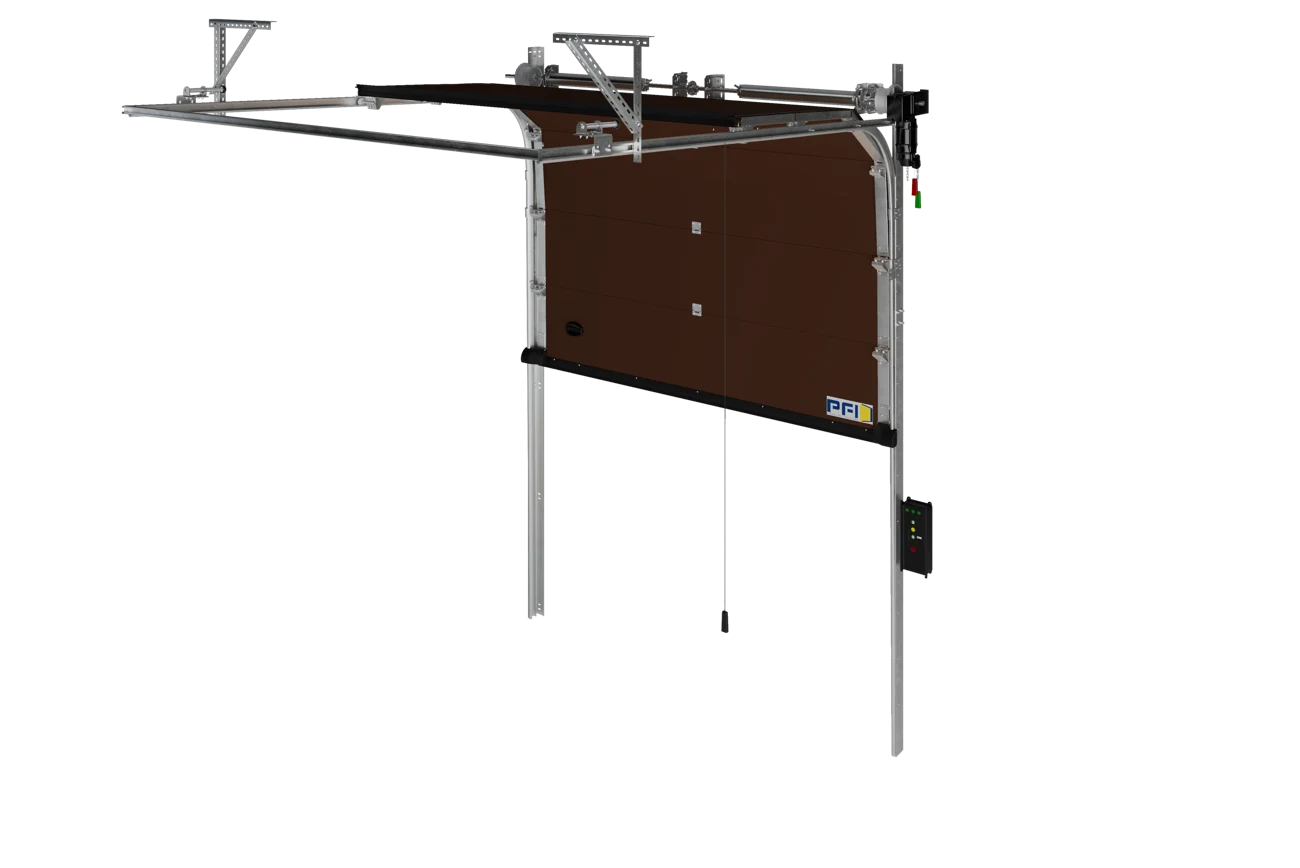

Pull cord
Allow the door to be opened by a rope hanging from above

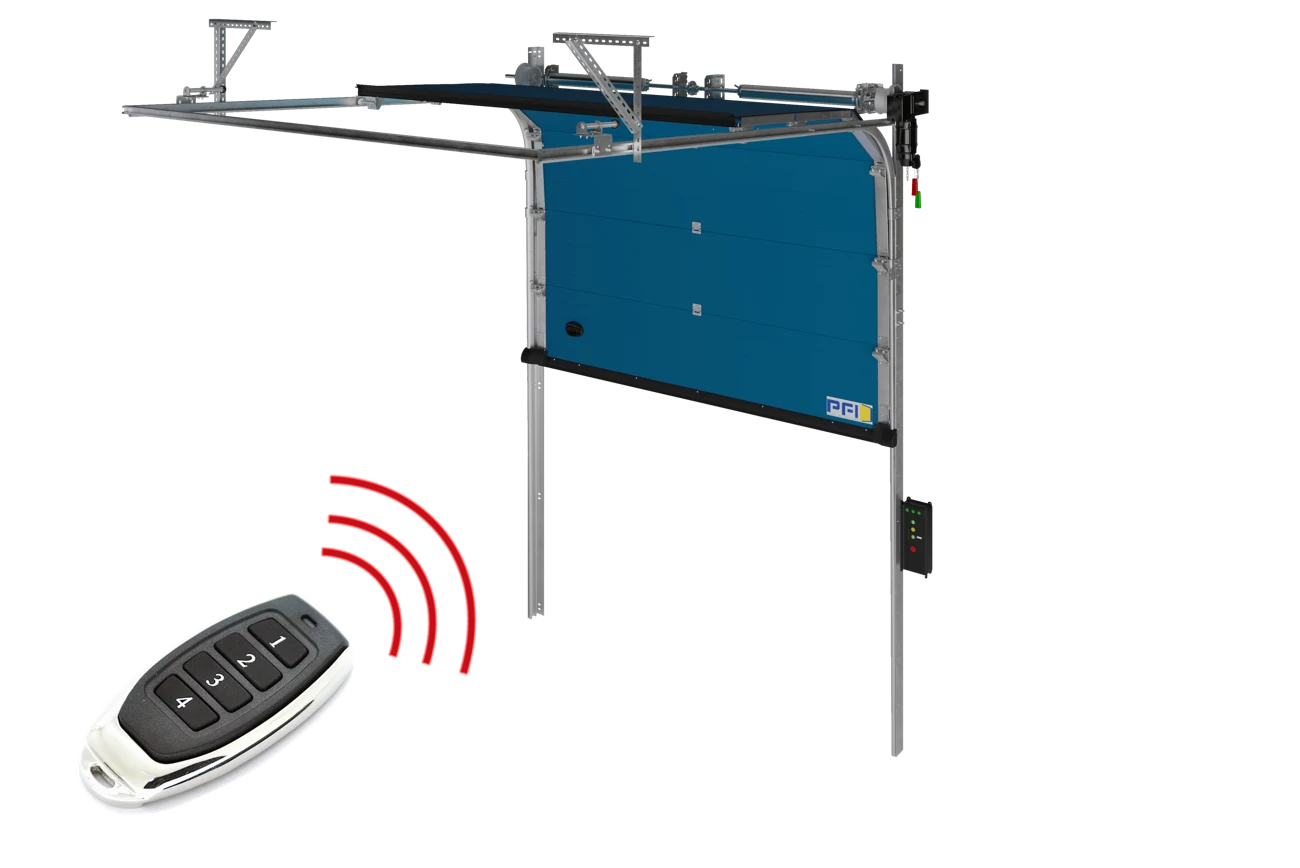

Remote control
It is possible to operate multiple doors with one remote control

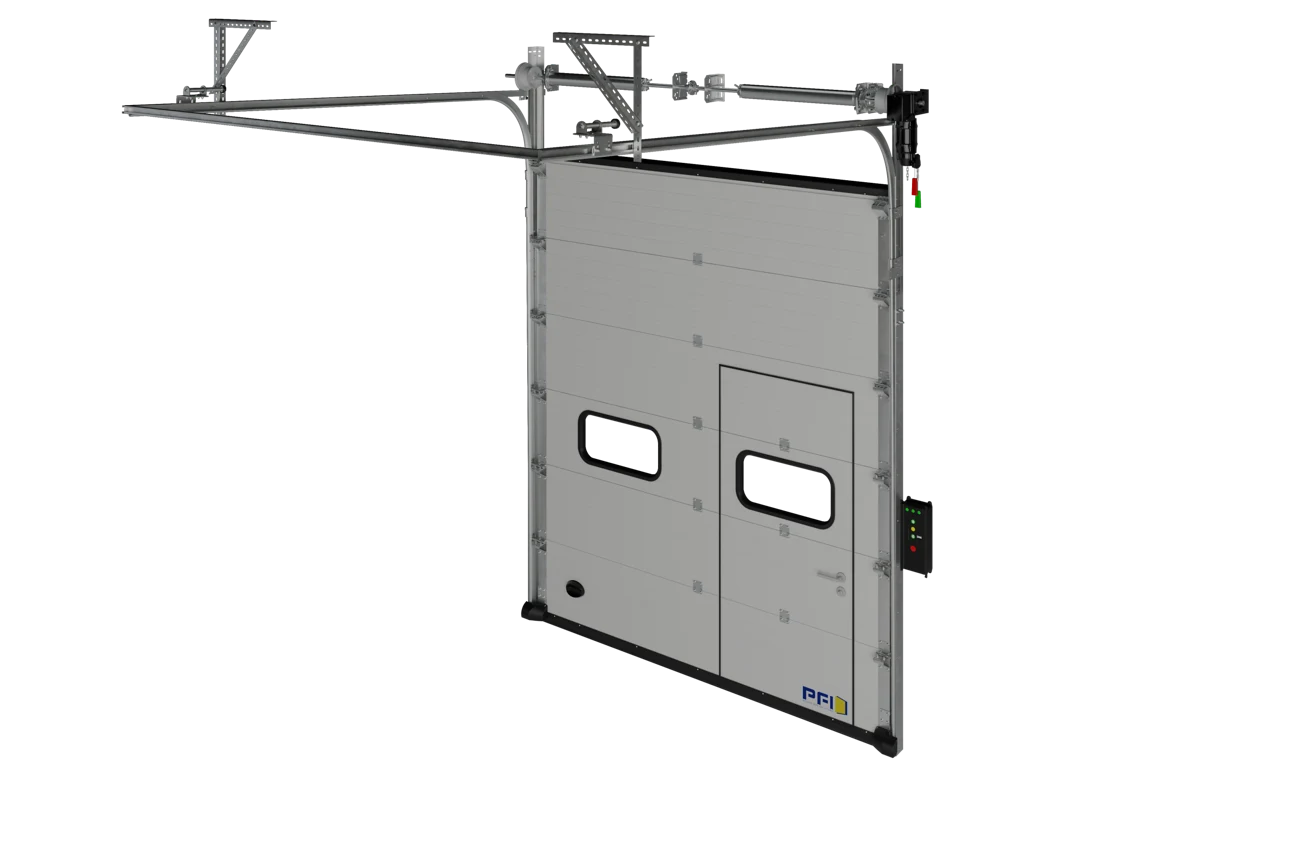

Pedestrian door
For areas with high traffic of pedestrians

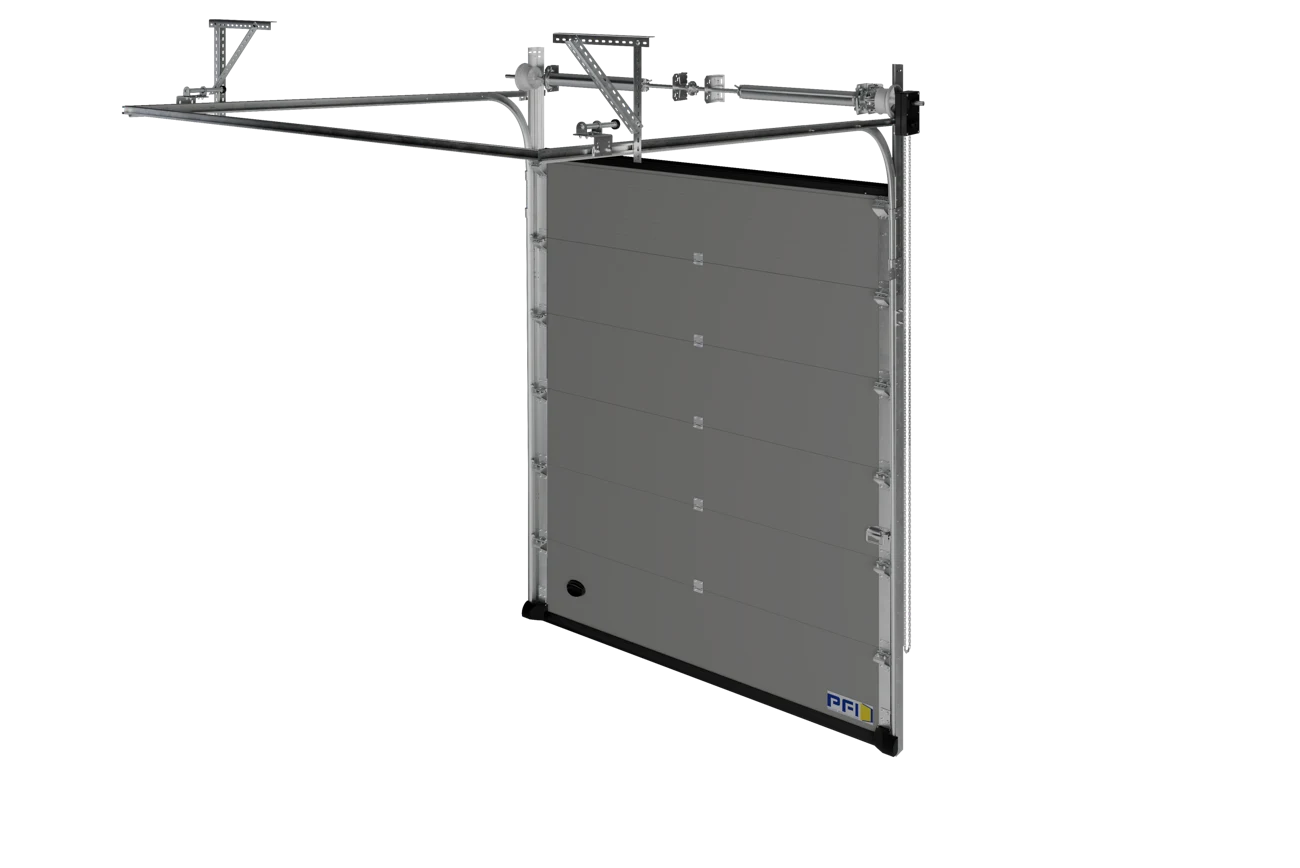

Latch
It will prevent the door from opening manually

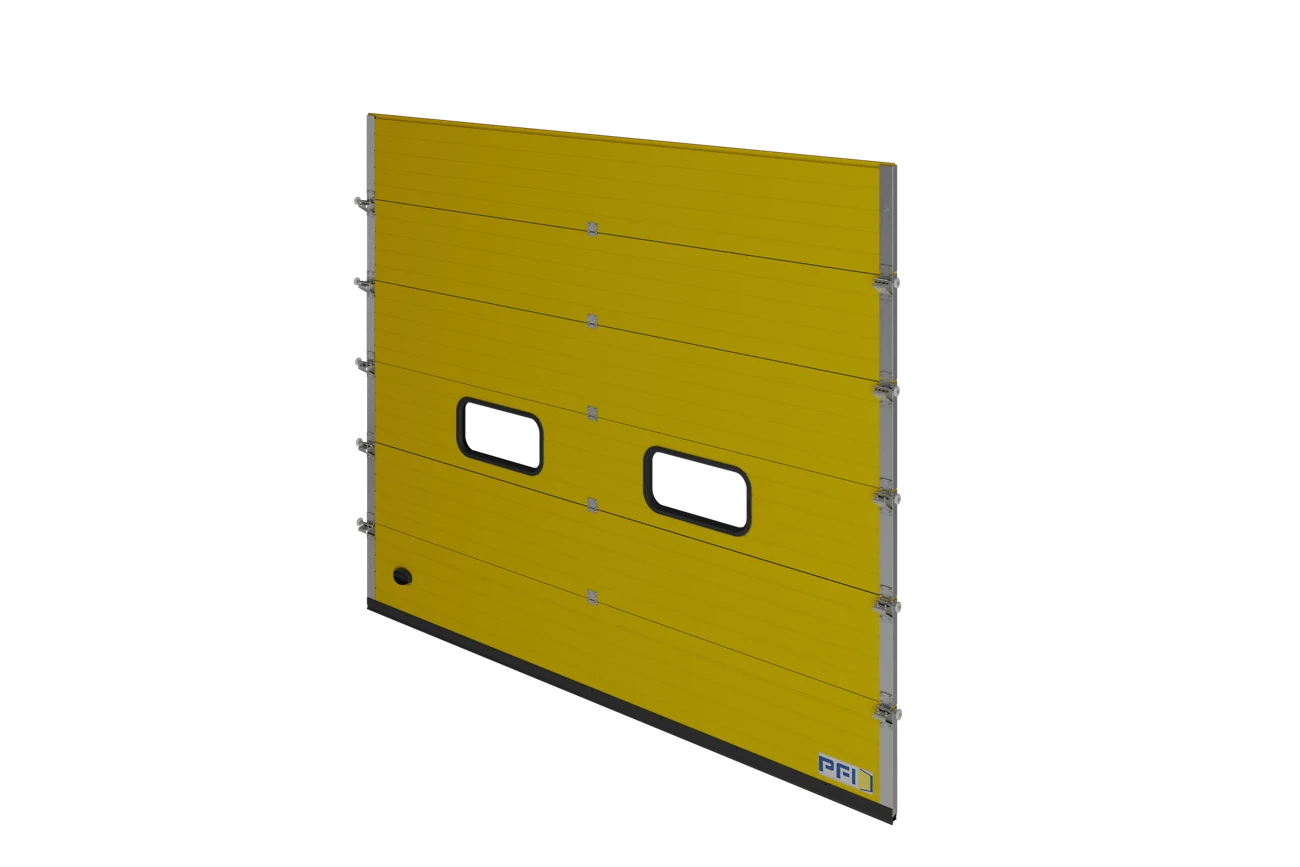

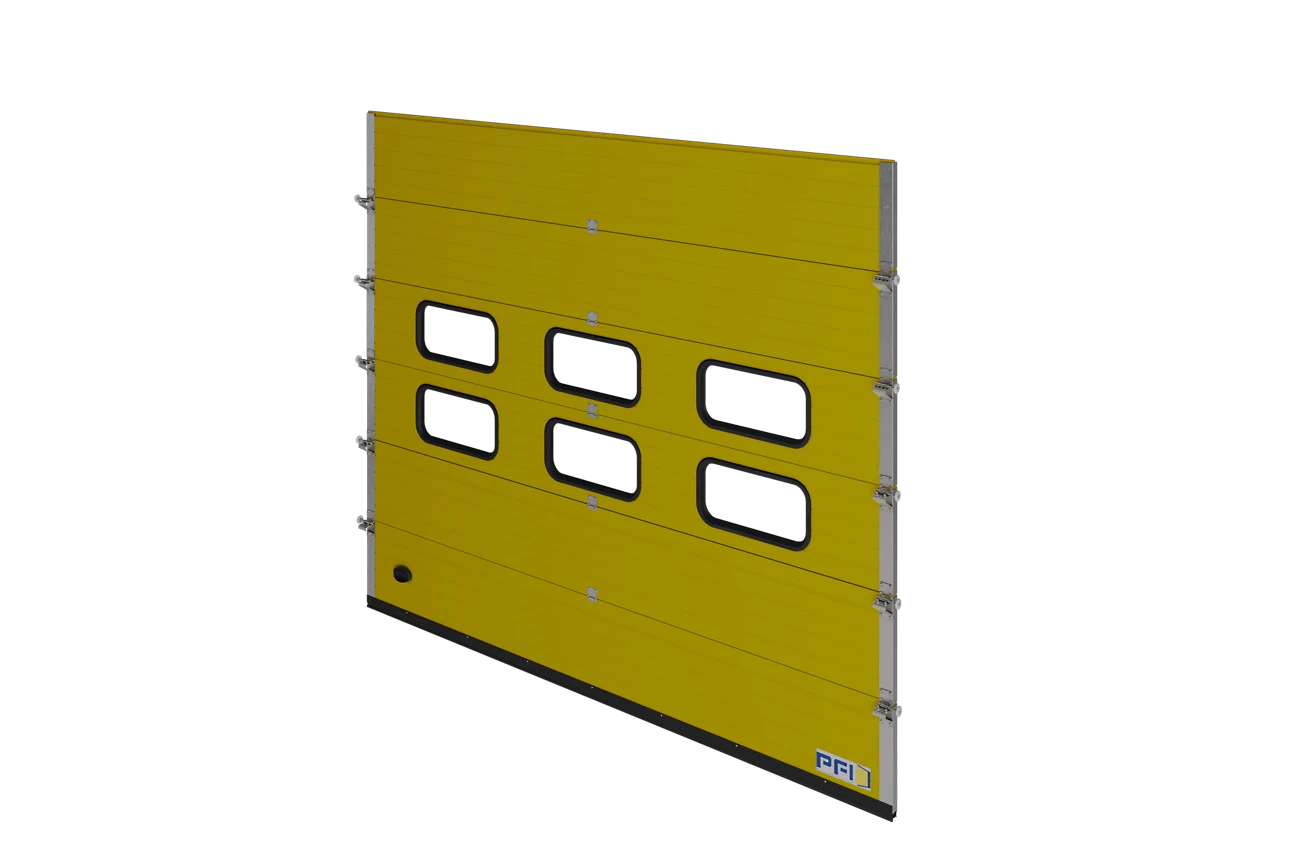

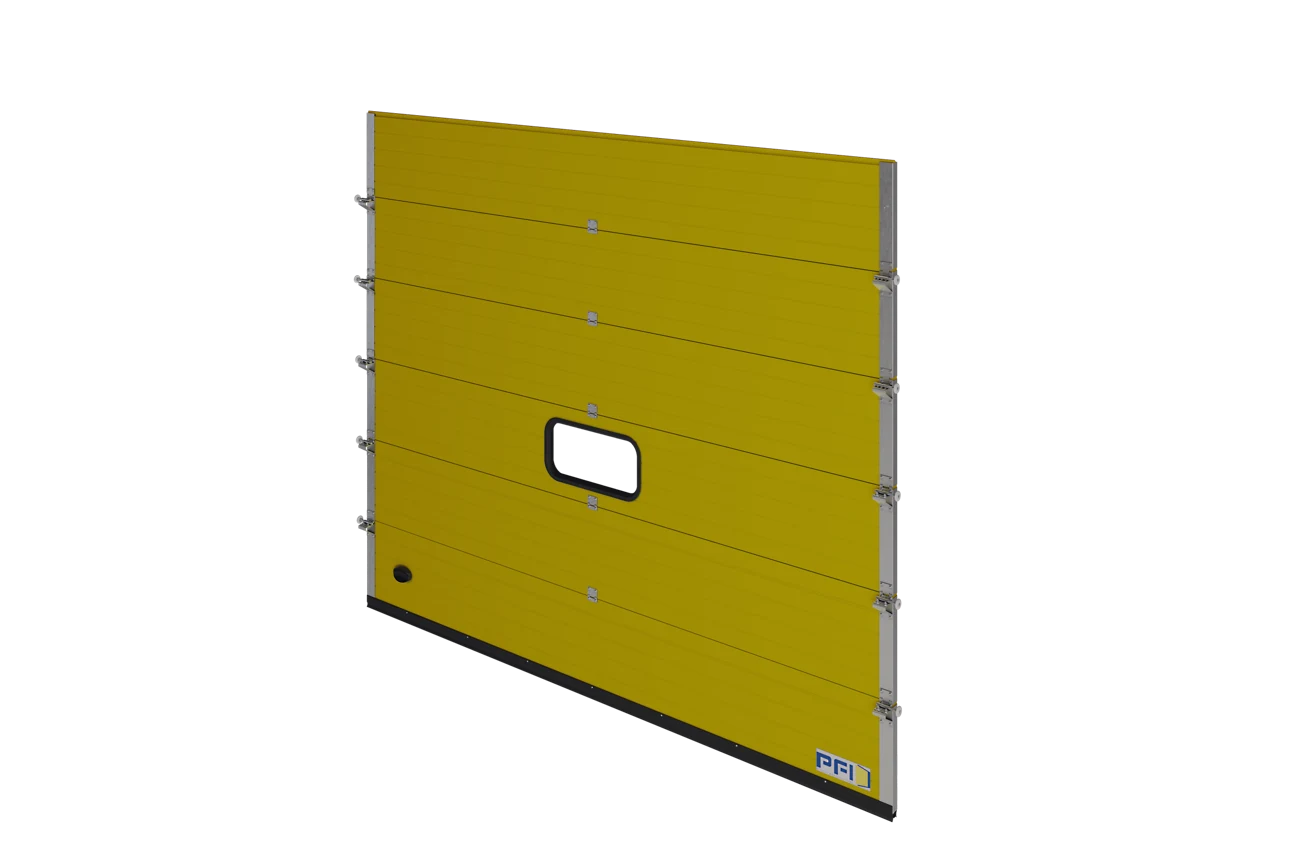

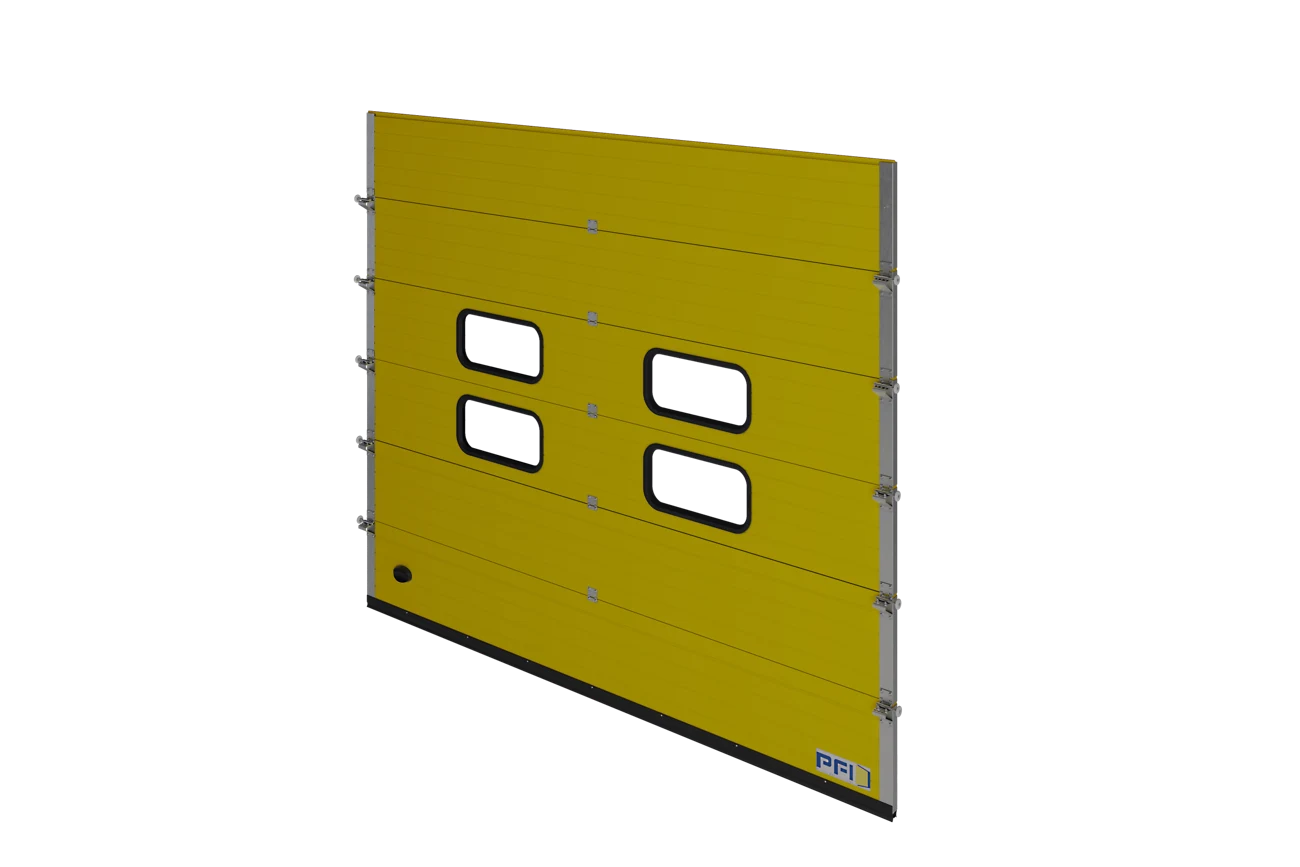

Window options
