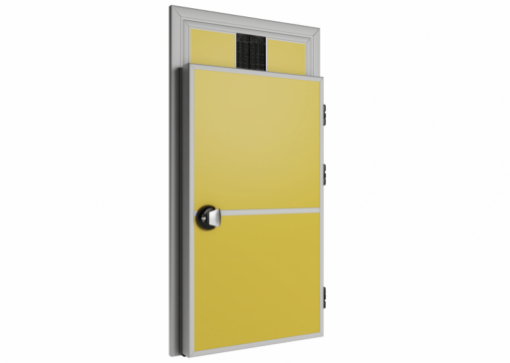

Rail Passage Hinged Doors

PFI monorail hinged doors (CPG) are specially produced according to the monorail dimensions. By using a special hygienic brush and panels of the same color as the door installed inside the frame, we are minimizing air passage. They are manufactured as single or double blade. All PFI hinged doors can be equipped with an automatic door closer, a viewing window, a kick plate, etc.


Door frames are made from 2 different materials (PVC or anodized Aluminum).
All rail passage hinged doors have reinforcement sheets inside the frame for the accessories.
Our rail passage hinged cold storage door frames are suitable for all kinds of hygienic washing.


Rail passage sliding doors are produced in 2 different thicknesses (70 and 90mm).
Rail passage hinged door blades are produced as monoblock with 40-43 kg/m³ CFC-free polyurethane injected.
The blade-edge profile of all our rail passage doors is made from anodized aluminum.
In all our rail passage hinged doors, there are reinforcement sheets inside the blade for all the accessories.
There is an one line of EPDM gaskets on the door blade.
Door blade is produced as in standard 0.5 mm thickness 130µ PVC coated galvanized sheet. It can also be produced as 25µ pre-painted galvanized sheet with any RAL color or A304 quality stainless sheet upon request. If desired, sheet thicknesses can be produced in the range of 0.5 and 1.2 mm.
Our rail passage hinged door blades are suitable for all kinds of hygienic washing.


We have different options for any kind of application.

You can request technical drawings of our products from our technical department and request an exploration to make feasibility assessments. For more detailed information about our rail passage hinged doors, you can download our catalog or directly contact us.

Rail passage hinged doors features CPG7 CPG9
Working temperature UP TO +0 DEGREE UP TO +0 DEGREE
Blade thickness 70mm 90mm
Polyurethane density 38-43 kg/m3 38-43 kg/m3
Two blades versions --- ---
Heating cable --- ---
Standard threshold Without threshold S3 model Without threshold S3 model
Frame system PVC veya Alüminyum PVC veya Alüminyum
